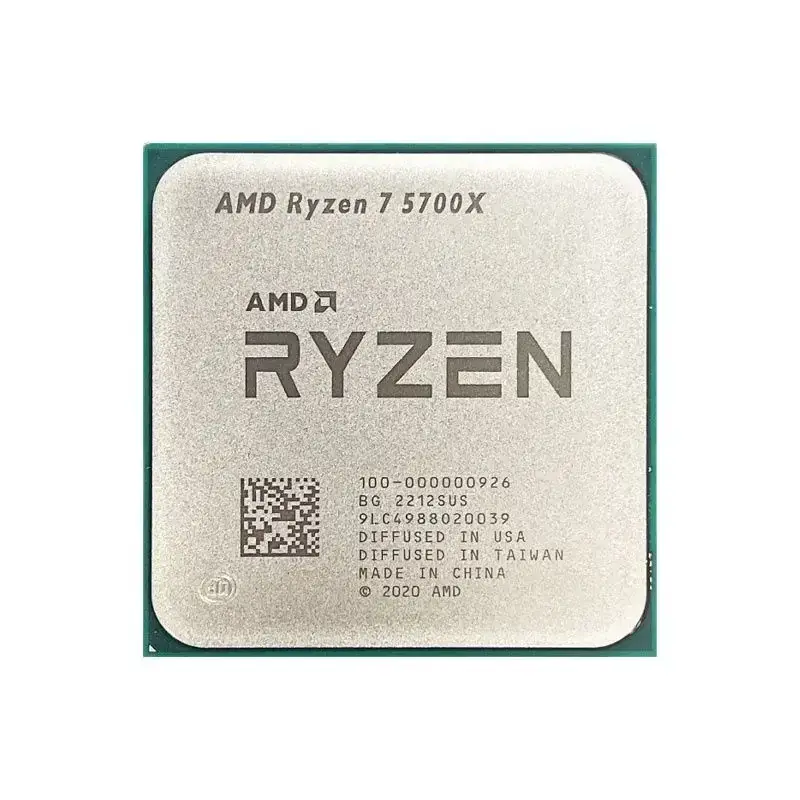

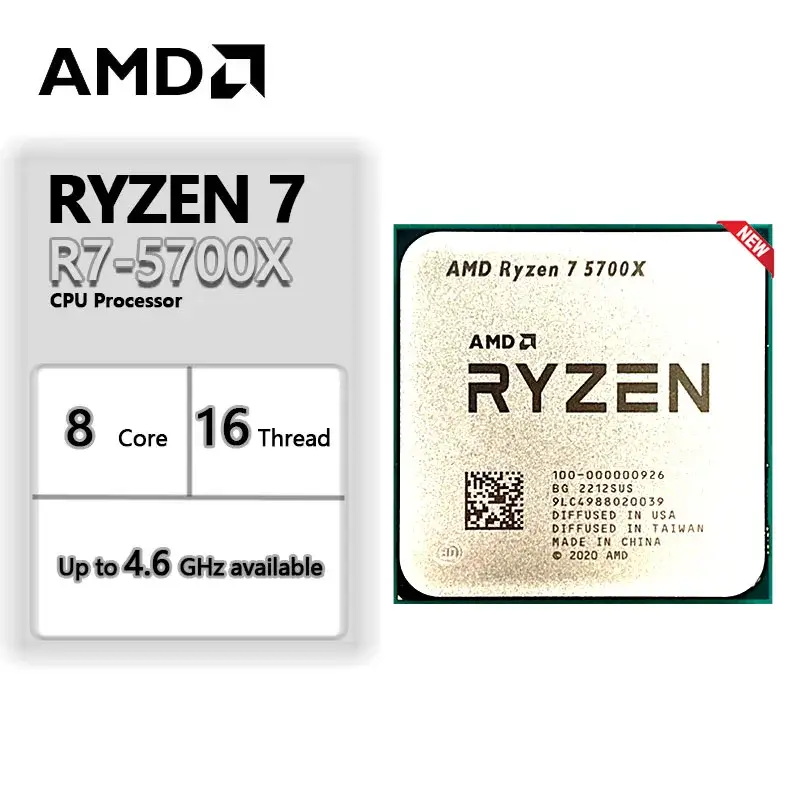

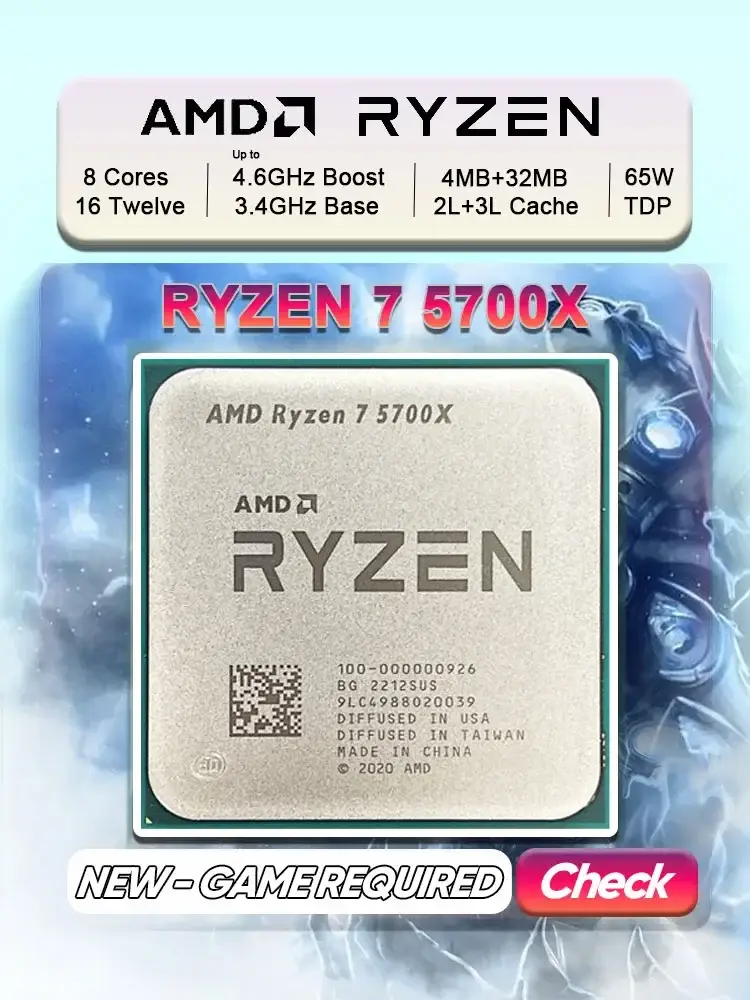

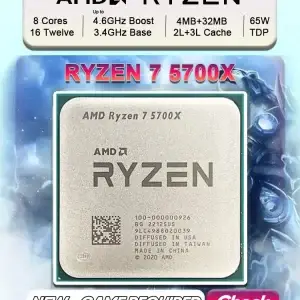

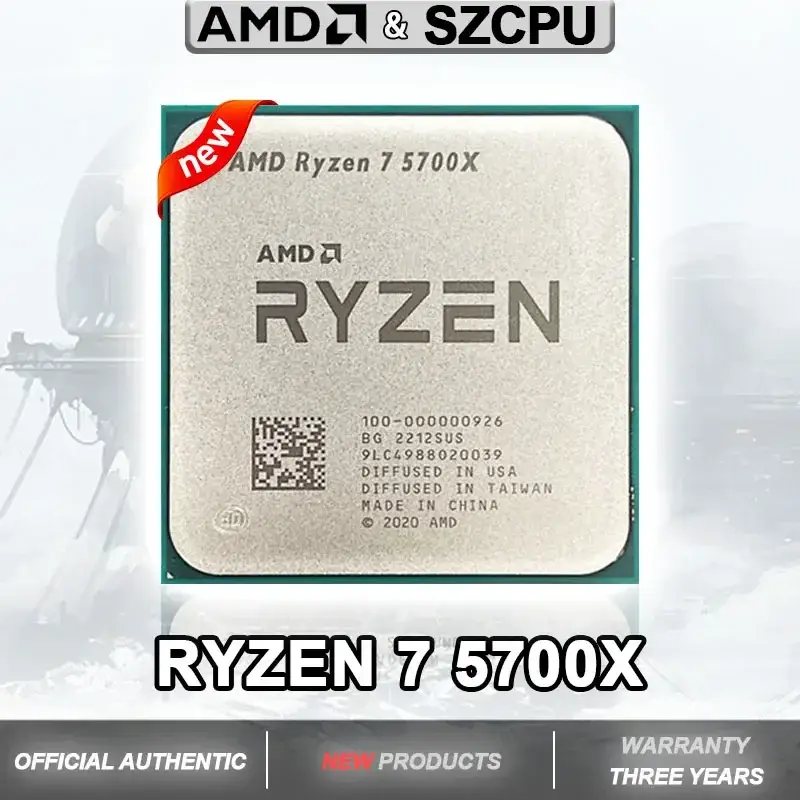

AMD R7 5700X Ryzen 7 5700X 3.4 GHz Eight-Core 16

Description

Refer below for more details.

Tips:

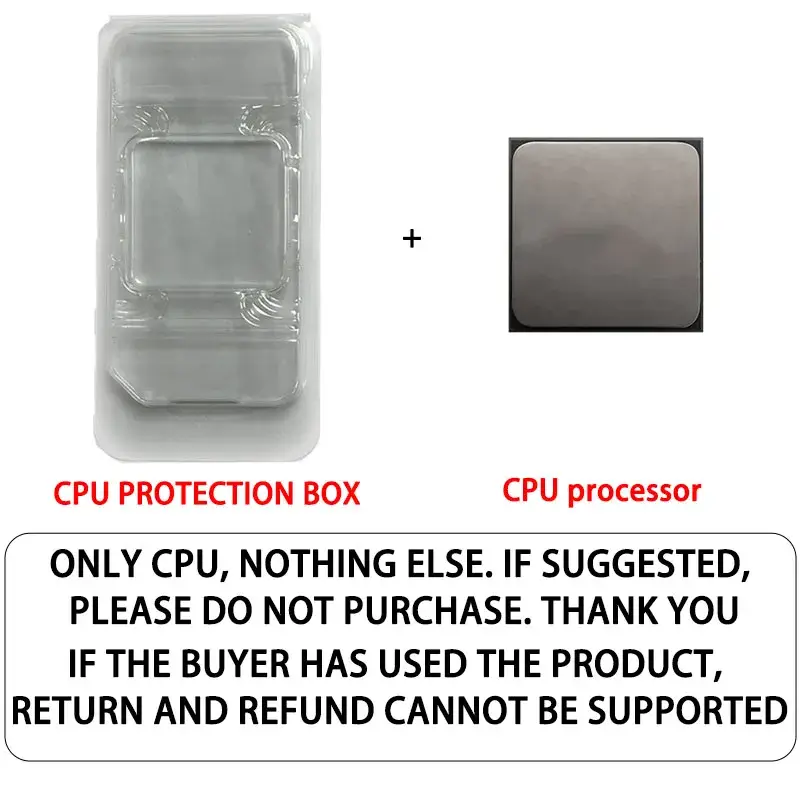

1.The product is brand New One year warranty and will be shipped loose! Minor surface wear, bent pins, or stains are normal. Please do not purchase if you mind these conditions.

2.The CPU is manufactured in China or Malaysia, randomly delivered, and does not accept specified production countries. If you mind, please do not purchase.

3.The product price does not include tariffs, and additional tariffs need to be paid. Please refer to the tariff policies of your local country！

4.EU countries choose tariff payment in the order online.(The EU order exceeds 150 euros and cannot be sent out to you. Please carefully check the payment)

5.If you have problems with the installation, you can seek help from customer service in the first instance!

General information

Type	CPU / Micro
Market segment	Desktop
Family	AMD Ryzen 7
Model number	5700X
CPU part numbers	100-000000926 is an OEM/tray microcpu 100-100000926WOF is a boxed microcpu without fan and heatsink
Frequency	3.4 GHz / 3400 MHz
Maximum turbo frequency	4.6 GHz / 4600 MHz
Package	1331-pin lidded micro-PGA package
Socket	Socket AM4
Introduction date	March 15, 2022 (announcement) April 4, 2022 (availability)
Price at introduction	$299
Architecture / Microarchitecture
Microarchitecture	Zen 3
cpu core	Vermeer
CPUID	A20F12
Manufacturing	TSMC 0.007 micron FinFET (CPU die) Globalfoundries 0.012 micron (I/O die)
Die	74mm2 (CPU die) 125mm2 (I/O die)
Data width	64 bit
The number of CPU cores	8
The number of threads	16
Floating Point Unit	Integrated
Level 1 cache size	8 x 32 KB 8-way set associative instruction caches 8 x 32 KB 8-way set associative data caches
Level 2 cache size	8 x 512 KB 8-way set associative unified caches
Level 3 cache size	32 MB 16-way set associative shared cache
Physical memory	128 GB
Multiing	Unicpu
Extensions & Technologies	MMX instructions Extensions to MMX SSE / Streaming SIMD Extensions SSE2 / Streaming SIMD Extensions 2 SSE3 / Streaming SIMD Extensions 3 SSSE3 / Supplemental Streaming SIMD Extensions 3 SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 SSE4a AES / Advanced Encryption Standard instructions AVX / Advanced Vector Extensions AVX2 / Advanced Vector Extensions 2.0 BMI / BMI1 + BMI2 / Bit Manipulation instructions F16C / 16-bit Floating-Point conversion instructions FMA3 / 3-operand Fused Multiply-Add instructions SHA / Secure Hash Algorithm extensions AMD64 / AMD 64-bit technology SMT / Simultaneous MultiThreading AMD-V / AMD Virtualization technology Precision Boost 2
Security Features	EVP / Enhanced Virus Protection
Low power features	Pure Power
Integrated peripherals / components
Integrated graphics	None
Memory controller	Memory channels (total): 2 Supported memory: DDR4-3200 ECC supported: Yes
Other peripherals	PCI Express 4.0 interface (20 lanes)
Supported interfaces	USB-C interface USB 3.2 Gen 2 (4 ports) SATA (2 ports)
Electrical / Thermal parameters
Maximum operating temperature	90°C
Thermal Design Power	65 Watt
